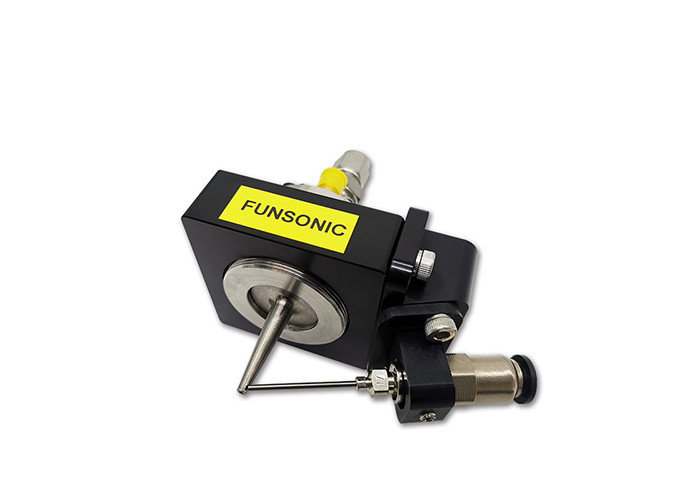

60Khz Line Type Ultrasonic Atomization Nozzle

Name: 60Khz Line Type Ultrasonic Atomization Nozzle
Brand: FUNSONIC
Price: 1 USD

Quality 60Khz Line Type Ultrasonic Atomization Nozzle for sale

Brand Name : FUNSONIC

Model Number : FSW-6005-L

Certification : CE

Place of Origin : CHINA

MOQ : 1 UNIT

Price : Negotation

Payment Terms : T/T, Western Union

Supply Ability : 1000 unit per month

Packaging Details : Packed by carton

Production Name : Ultrasonic Spraying Nozzle

Frequency : 60Khz

Max Power : 15w

Automized Particle Size Range : 15-40μm

Spray flow : 0.01-1ml/min

Liquid viscosity : <15cps

Particle size : <8μm

Application : Medical balloon, stent, fine wire spraying

Contact Now

60Khz Line Type Ultrasonic Atomation Nozzle

Description:

The line spray type focused ultrasonic atomization nozzle is combined with low-pressure air/gas to produce a soft, highly focused small droplet beam. The isolated wave tube transports the liquid to the atomization surface of the nozzle, while the air/gas transported through the nozzle hole at a fixed low pressure shapes the atomized droplets into a very precise target jet beam with a diameter of only 0.020 inches (0.5 millimeters).

Parameters:

Model	FSW-6005-L
Name	60Khz Line Ultrasonic Nozzle Atomization
Frequency	60Khz
Atomized particle size range(μm)	15-40
Spray width(mm)	0.5-2
Spray flow(ml/min)	0.01-1
Spray height(mm)	10-20
Liquid viscosity (cps)	<15
Particle size (μm)	<8
Diversion pressure (Mpa)	<0.02
Application	Medical balloon, stent, fine wire spraying

The advantages of ultrasonic fine line spraying:

1. Minimal spraying area, minimal flow rate: spraying width 1-2mm, minimum flow rate 0.005ml/min

2. Uniform coating: Uniformity>95

3. Saving raw materials: The utilization rate of raw materials is over 85%, which is 4 times higher than traditional two fluid spraying

4. Efficient spraying, reducing raw material consumption

5. Fine atomized particles, uniform atomized particles

6. It can be sprayed intermittently or continuously

7. Will not block the nozzle

8. Anti corrosion nozzle

9. High precision controllable spraying

60Khz Line Type Ultrasonic Atomation Nozzle

60Khz Line Type Ultrasonic Atomization Nozzle
